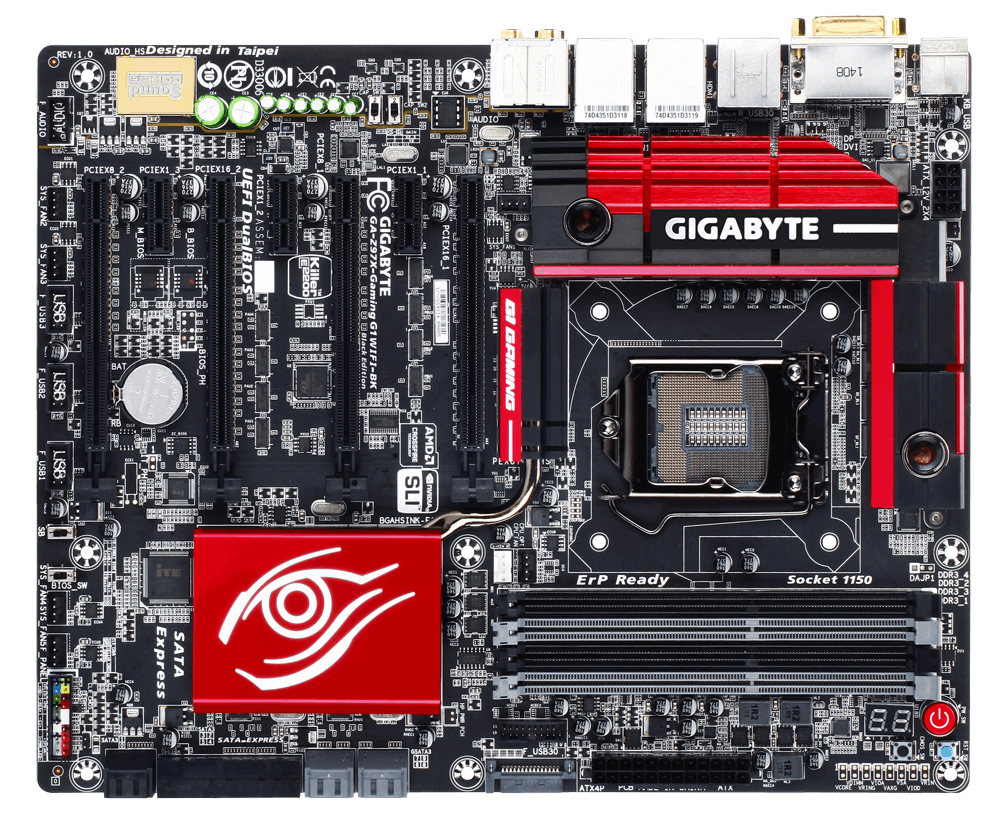

Mengenal Motherboard Gigabyte GA-Z97X-Gaming G1 WIFI-BK

Ini adalah tugas pertama pada mata kuliah Analisis Desain dan Sistem Jaringan. Kali ini motherboard yang saya pilih adalah produk dari Gigabyte.

Perusahaan perangkat keras dan motherboard, Gigabyte, terus melakukan inovasi. Pada tahun 2006, misalnya, Gigabyte menjadi perusahaan pertama yang menggunakan kapasitor solid buatan Jepang pada produknya dan menamakannya The Ultra Durable motherboard series.

Di tahun 2007, Gigabyte meluncurkan seri motherboard The Ultra Durable 2 yang memperkenalkan penggunaan Ferrite core chokes dan Low RDS (on) Mosfet sebagai tambahan dari kapasitor solid dari Jepang, yang menghasilkan stabilitas sistem yang tak tertandingi, ketahanan, dan kinerja overclocking.


Kemudian pada 2008, perusahaan tersebut meluncurkan teknologi yang paling banyak menghemat energi, yaitu teknologi Dynamic Energy Saver dan Ultra Durable 3 (desain motherboard untuk consumer desktop pertama yang memiliki 2 ons lapisan PCB tembaga), yang secara dramatis menurunkan temperatur sistem, meningkatkan efisiensi energi, dan memperkuat stabilitas pada overclocking.

Tahun ini, tepatnya pada Juni lalu di acara Computex Trade Show, Gigabyte memperlihatkan desain 24-phase power VRM, serta teknologi Smart 6 yang menyederhanakan banyak fitur-fitur Windows Vista dan Windows 7, Smart Dual LAN dan Smart TPM. Semua inovasi ini akan menjadi standard industri motherboard di masa depan.




  • Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel®Pentium® processors/Intel® Celeron® processors in the LGA1150 package
  • L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
  • Intel® Z97 Express Chipset
Memory
  • 4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  • Dual channel memory architecture
  • Support for 3200(O.C.) / 3100(O.C.) / 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2500(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600 / 1333 MHz memory modules
  • Support for non-ECC memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard GraphicsIntegrated Graphics Processor:
  • 1 x DVI-I port, supporting a maximum resolution of 1920x1200@60Hz
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@24Hz or 2560x1600@60Hz
    * Support for HDMI 1.4a version.
  • 1 x DisplayPort, supporting a maximum resolution of 4096x2160@24Hz or 3840x2160@60Hz
    * Support for DisplayPort 1.2 version.
  • Support for up to 3 displays at the same time
  • Maximum shared memory of 1 GB
Audio
  • Creative® Sound Core 3D chip
  • TI Burr Brown® OPA2134 operational amplifier
  • Support for Sound Blaster Recon3Di
  • High Definition Audio
  • 2/5.1-channel
  • Support for S/PDIF Out
LAN
  • 1 x Qualcomm® Atheros Killer E2201 chip (10/100/1000 Mbit) (LAN1)
  • 1 x Intel® GbE LAN phy (10/100/1000 Mbit) (LAN2)
    * Teaming is not supported.
Wireless Communication module
  • Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
  • Bluetooth 4.0, 3.0+HS, 2.1+EDR
  • Support for 11ac wireless standard and up to 867 Mbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots
    • 2 x PCI Express x16 slots, running at x16 (PCIEX16_1~2)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots.
    • 2 x PCI Express x16 slots, running at x8 (PCIEX8_1~2)
      * The PCIEX8_1 slot shares bandwidth with the PCIEX16_1 slot and the PCIEX8_2 slot with PCIEX16_2. The PCIEX16_1/PCIEX16_2 slot will operate at up to x8 mode when the PCIEX8_1/PCIEX8_2 is populated.
      (All PCI Express x16 slots conform to PCI Express 3.0 standard.)
  • 3 x PCI Express x1 slots
    (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
Multi-Graphics Technology
  • Support for 4-Way/3-Way/2-Way AMD CrossFire™/NVIDIA® SLI™ technology
Storage InterfaceChipset:
  • 1 x SATA Express connector
  • 6 x SATA 6Gb/s connectors (SATA3 0~5)
  • Support for RAID 0, RAID 1, RAID 5, and RAID 10
    (SATA Express and SATA3 4/5 connectors can only be used one at a time.)
2 x Marvell®88SE9172 chips:
  • 4 x SATA 6Gb/s connectors (GSATA3 6~9)
  • Support for RAID 0 and RAID 1
USBChipset:
  • 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • 8 x USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers)
Chipset + Renesas®uPD720210 USB 3.0 Hub:
  • 4 x USB 3.0/2.0 ports on the back panel
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x PCIe power connector
  • 1 x SATA Express connector
  • 10 x SATA 6Gb/s connectors
  • 1 x CPU fan header
  • 1 x water cooling fan header (CPU_OPT)
  • 5 x system fan headers
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.0/2.0 header
  • 3 x USB 2.0/1.1 headers
  • 1 x Clear CMOS jumper
  • 1 x power button
  • 1 x reset button
  • 1 x Clear CMOS button
  • 2 x audio gain control switches
  • 8 x onboard voltage measurement points
  • 2 x BIOS switches
Back Panel Connectors
  • 1 x PS/2 keyboard/mouse port
  • 1 x optical S/PDIF Out connector
  • 1 x DVI-I port
  • 1 x DisplayPort
  • 1 x HDMI port
  • 2 x USB 2.0/1.1 ports
  • 6 x USB 3.0/2.0 ports
  • 2 x RJ-45 ports
  • 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In/Mic In, Line Out, Headphone)
I/O Controller
  • iTE® I/O Controller Chip
H/W Monitoring
  • System voltage detection
  • CPU/System/Chipset temperature detection
  • CPU/CPU OPT/System fan speed detection
  • CPU/System overheating warning
  • CPU/CPU OPT/System fan fail warning
  • CPU/CPU OPT/System fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  • 2 x 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • Support for DualBIOS™
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for APP Center
    * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
    @BIOS
    EasyTune
    EZ Setup
    Fast Boot
    Game Controller
    Cloud Station
    ON/OFF Charge
    Smart TimeLock
    Smart Recovery 2
    System Information Viewer
    USB Blocker
  • Support for Q-Flash
  • Support for Smart Switch
  • Support for Xpress Install
Bundle Software
  • Norton® Internet Security (OEM version)
  • Intel® Rapid Start Technology
  • Intel® Smart Connect Technology
  • Intel® Smart Response Technology
Operating System
  • Support for Windows 8.1/8/7
Form Factor
  • ATX Form Factor; 30.5cm x 24.4cm
